Slat conveyors

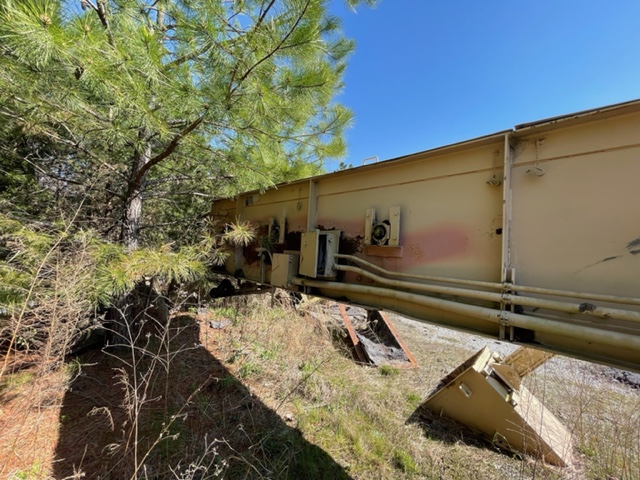

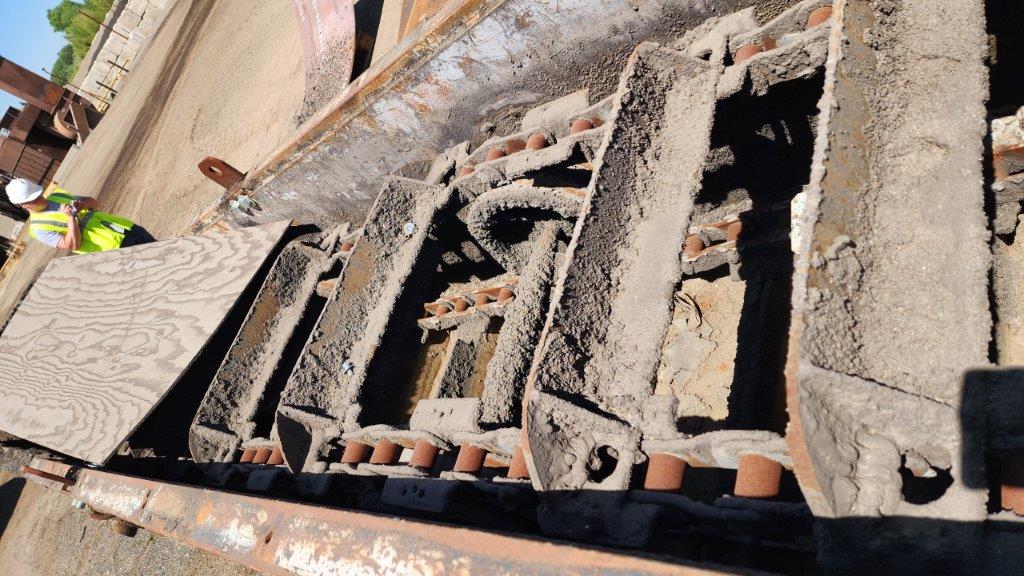

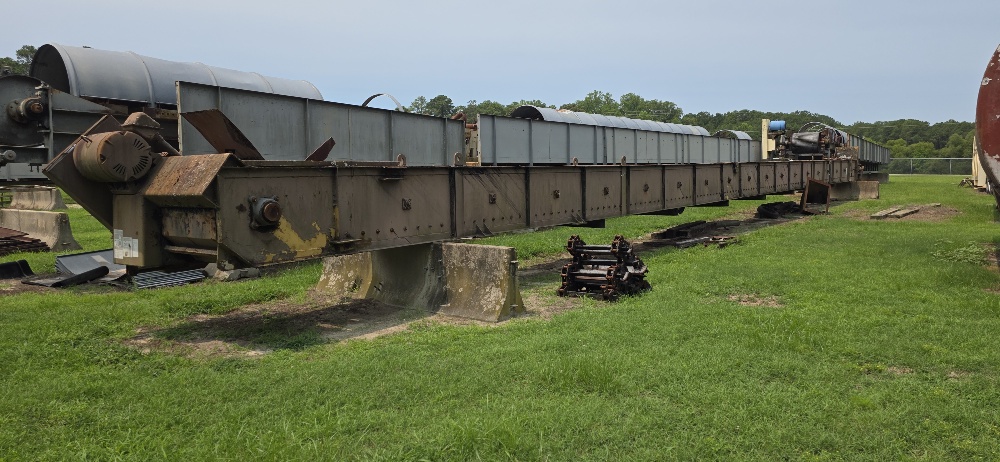

Sale Pending - Stationary 92' (350tph) Astec Drag Slat Conveyor

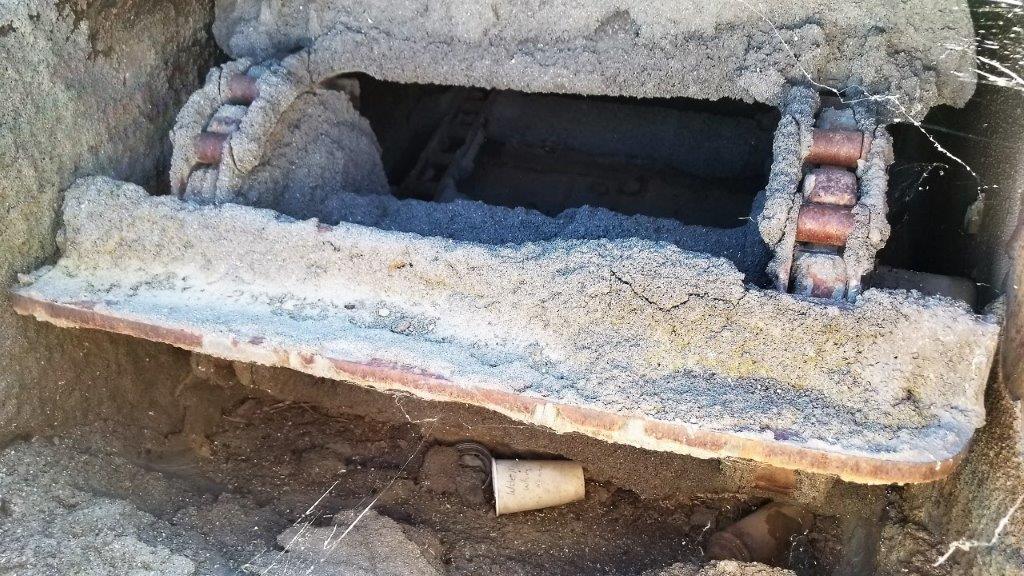

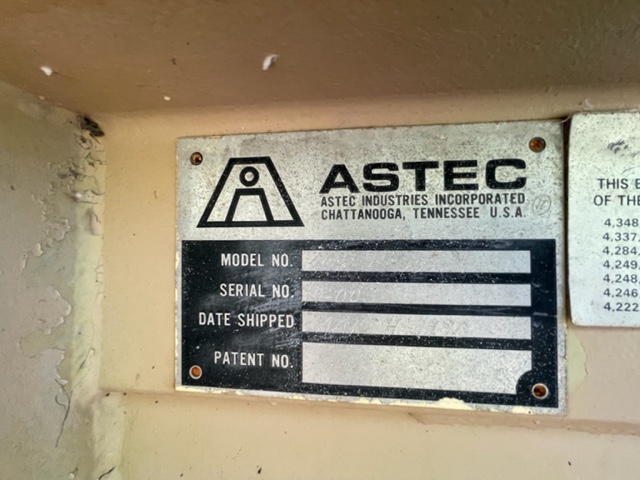

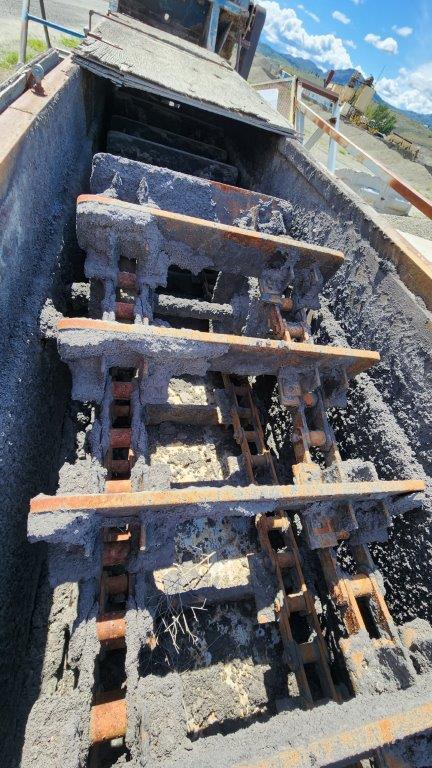

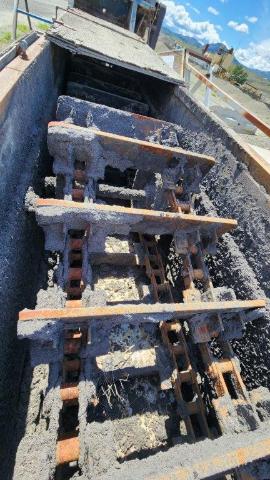

This 1995 Astec main drag slat conveyor is 92’ long end to end and 90’ shaft to shaft. It is 24” wide x 42” deep and will convey a nominal 350 tph of asphalt material. It is a single chain design with a 100 hp drive system. There is a stairway up both sides of the conveyor. Conditions: Sliding bearing on the sidewalls – Very good Chain – 6” pitch x 9856 design - approx. 90%+ life remaining Slats – 1” thick – rounded corners – approx. 70% life remaining Sprockets – very good, approx. 90% life remaining This unit has recently been removed from service when the contractor installed a 550-tph-drum mixer plant. It is on the ground and ready to be trucked.

More Photos:

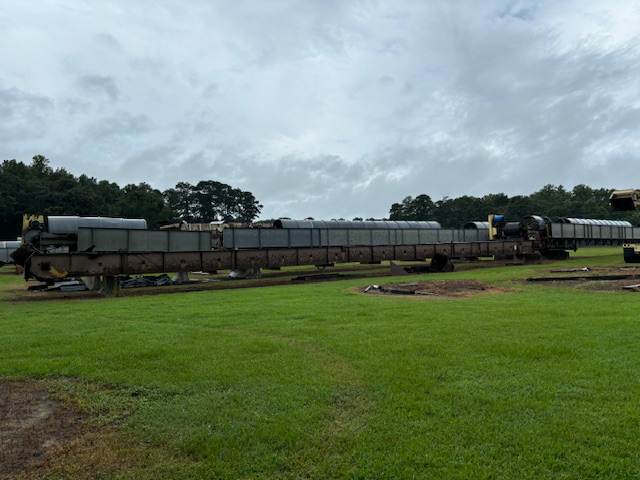

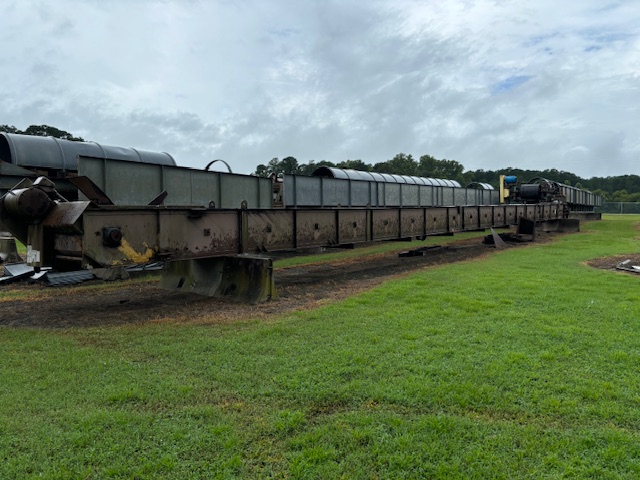

Stationary 92' (400tph) Stansteel Drag Slat Conveyor

Make: Stansteel Year: 2008 Length: 92’ Shaft to Shaft: 89’ Box: 36” Wide Condition: GREAT (Less than 10,000 tons since new) This 2008 Stansteel drag slat conveyor is rated at a nominal capacity of 400 tph. The box is 92' LONG, 89' SHAFT TO SHAFT, BOX 36” wide. It has sidewalls constructed of cold cambered bridge beams with a sub floor supporting 1” thick replaceable Chrome Carbide wear plates. Light and heat retentive marine grade plywood provides the top covers. The double strand 6” pitch roller chain is a Rex 9856 design. The Leeson 100 HP motor and a Line-O-Power planetary gear reducer is mounted for the drive package. There are sliding bearings on the sidewalls, which allow the slats to move up and over any obstructions. A duel stairway is attached to the left and right side of the conveyor. The Chrome Carbide wear plates, slats, and sliding bearings, all appear to be in new good condition. The chain has ~100% life remaining. The slat has a mix reject system.

More Photos:

Portable 61' (300tph) Almix Slat Conveyor

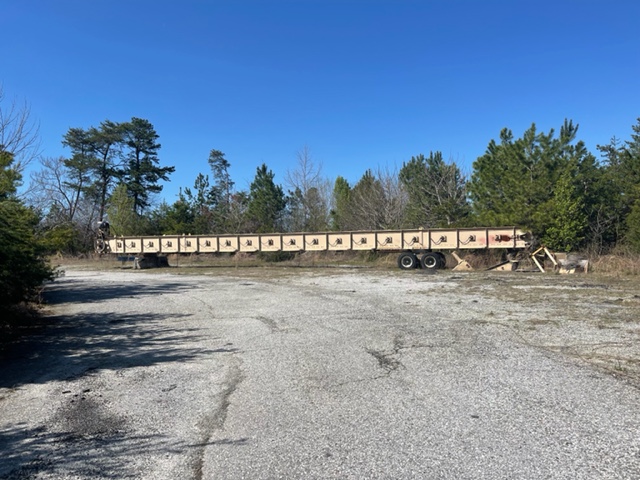

Portable 61' (300tph) Almix Slat Conveyor ALMIX 61 long. 54 shaft to shaft. 32" slats. Double chain oil heated floor 75hp. 3 phase motor Rex III PlanetGear reducer Walk Way. Weighs 43,000lbs Single Axle. Tires and rims will be installed Brakes and lights would need to be checked. Again the slat is 61' total length and the box is 31 3/4" deep and 36 1/2" wide.

More Photos:

Portable 46' Jumper Slat Conveyor

Portable 46' Jumper Slat Conveyor Drive Package Portable 46' x 3' Conveyor

More Photos:

Stationary 14' Transfer Slat Conveyor

Stationary 14' Transfer Slat Conveyor Set in Incline for Jumper Slat Can be reset for transfer Double Chain 14' Long 30" slats 30 Hp Drive Package

More Photos:

Stationary 13' (300tph) Gencor Transfer Slat Conveyor

Gencor Transfer slat 300TPH x 16 2-way transfer slat S/N 300TPHTC-161380-97-na Floor and slats good shape, chain approx 50% life 13' shaft to shaft Electric heated floor 25hp motor Rex reducer 30" Slats lifting eyes

More Photos:

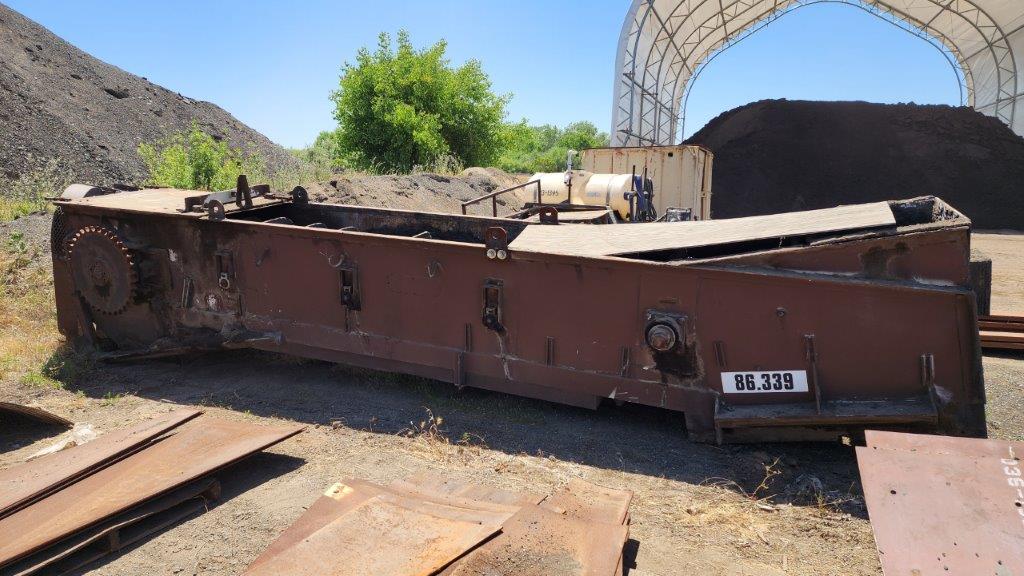

Portable 86' CMI Slat Conveyor

Portable 86' CMI Drag Slat Model EMS270D SN# 109 86' Long 48" Deep 32" Wide Box 30" Slats Single Chain (Chain and Head and Tail Pulleys 80%) Oil Heated Floor (Floor .600 Condition Good 75%) Reject Chute (Low Point Drop Out) NO REDUCER (Rex Neptune Reducer 24.1 Missing) 100 HP Motor with Guard on Slat 24" Side Walkway with Top Work Plat Form On The Ground Ready To Load out. NOTE: dollys in photos do not go with sale.

More Photos:

Stationary 18'8" (400tph) Transfer Slat Conveyor

Stationary 18'8' (400tph) Transfer Slat Conveyor Transfer Slat 400 TPH 36" Slats Double Chain 30 HP Motor with Dodge Reducer 18'.8" Over all Long (14'.7" Shaft to Shaft) Box 40" W, 32" Deep

More Photos:

Stationary 18' Step Up Slat Conveyor

Step Up Slat 30" Slats with Double Chain 18' Long Incline Legs No Heat

More Photos:

Stationary 21' (500tph) Transfer Slat Conveyor

Stationary 21' (500tph) Transfer Slat Conveyor Transfer Slat 500 TPH Double Chain 36" Slats 25"9' Over All Length 21" Shaft To Shaft 42" Wide Box, 32" Deep Electric Heated Floor NO DRIVE PACKAGE

More Photos:

Stationary Jumper Slat Conveyor

Stationary Jumper Slat Conveyor Jumper Slat Dodge TXT 9 Reducer 60 Hp Motor Slats 39" Double Chain Box 43" x 39' Needs Work (Needs New Chain and Slats) .

More Photos:

Stationary 10' Transfer Slat Conveyor

Stationary 10' Transfer Slat Conveyor 122" long 24" slats double chain, new chain/slats, the tags still on no motor GREAT CONDITION

More Photos:

Stationary 55' (450tph) Slat Conveyor

Stationary Slat Conveyor 450 tph 55' (Box 36"x 36") 75 hp Motor (No Reducer) 32" Double Chain (Condition Poor) Floor Segmented AR Plate (Condition Fair) Drive Head Pulley (Gear) Condition Good) Chop Gate (Reject Chute) Electric Heat On Floor Duel 24" Walk Ways

More Photos:

Stationary 15' (400tph) Astec Bin Top Conveyor

This 1995 Astec bin top conveyor is rated at a nominal 400 tph. Model # N62. It is 15’5" overall length and is 12’6" shaft to shaft. The unit is 32” wide and 33” deep. It utilizes a flop door to change the direction of the materials from silo #1 to silo #2. A 20 hp motor dives the unit. Conditions: Chain 95% , floor 90%, slats 80% Unit on ground and ready for loading

More Photos:

Stationary 17' Transfer Slat Conveyor

Transfer Slat 17' long 30 hp motor Rex reducer Double chain 34'' slates Lifting eyes

More Photos:
