Batch Plants and Towers

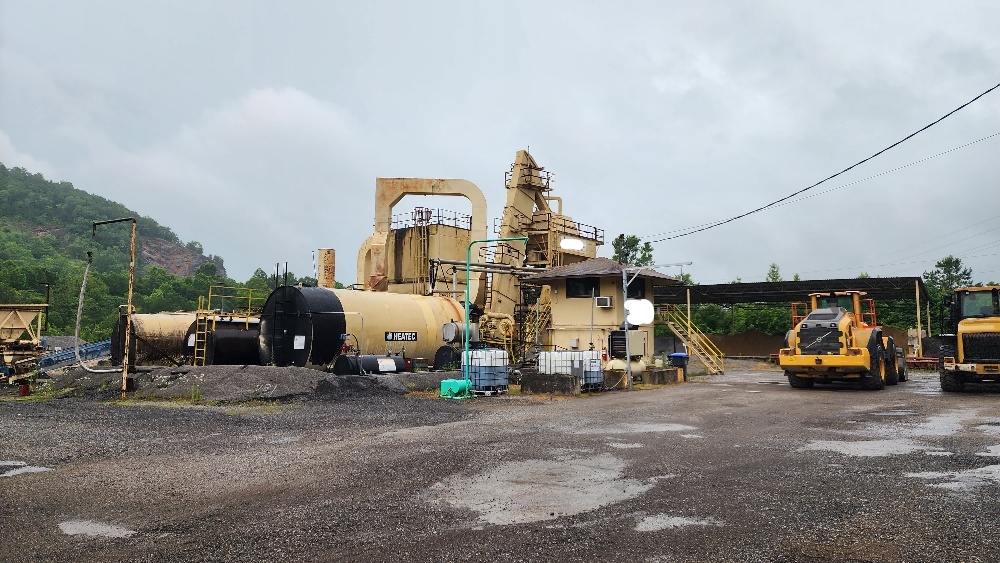

(Pending) Semi Portable 2012 Speco 150-170tph Batch Plant

......This is a complete VERY LOW TONNAGE plant (under 25,000 tons).......used on one job only..................... GENERAL DESCRIPTION A. MODEL: Batch—TSAP2000P B. 170 T/H CAPACITY (80 cycles per hour) *Based on 4% aggregate moisture content C. PORTABLE BATCH TYPE D. SERVICE VOLTAGE 460 V/60hz 3 phase or fixed upon request E. OPERATION Computerized control panel with manual control backup (Speco computer controls) F. 4400 LB/BATCH CAPACITY II. AGGREGATE CONTROL SYSTEM A. COLD FEED BIN 1.) 15-ton heaped capacity (247 cubic foot capacity non-heaped) 2.) 5 sets 10’x 13’ with no flow sensors 3.) Bin vibrating motor 0.33 HP for 2 bins B. HORIZONTAL BELT CONVEYOR 1.) Belt type 2.) 180- t/h capacity 3.) 24” wide 4.) 7.5 HP motor 5.) 3 HP belt feeder (4 sets) 6.) Weigh belt C.PORTABILITY 1.) Completely portable on a single axle assembly 2.) Includes four 10:00 X 20 tires and wheels, fifth wheel pin, air brakes, turn and stop lights and mud flaps III. AGGREGATE HEATING AND MIXING EQUIPMENT A. DRUM DRYER 1.) Cylindrical and inclination type 2.) 170 ton per hour with 4% aggregate moisture 3.) 87” diameter x 28’ long 4.) 15 HP motor (4 sets/ 4-wheel drive) 5.) Insulated with ceramic fiber and stainless-steel sheet cover B. KNOCKOUT BOX 1.) 51” X 92” X 106” 2.) Dust Return Screw Conveyor Motor 3HP x 3 sets C. DRUM BURNER (Hauck),SJL-4360E-114-01-06-1-02 and the serial number is C110246) 1.) Low pressure and spray type 2.) For heavy oil, diesel or gas (Set up for single fuel source Propane) D. TURBO BLOWER 1.) Turbo fan type 2.) 40 HP motor E. PORTABILITY 1.) Completely portable on a dual axle assembly 2.) Includes eight 10:00 X 20 tires and wheels, fifth wheel pin, air brakes, turn and stop lights and mud flaps IV.AGGREGATE SCREENING, WEIGHING & MIXING EQUIPMENT A. HOT ELEVATOR 1.) Vertical and induced discharge type 2.) 180 t/h 3.) 20 HP motor B. VIBRATING SCREEN 1.) 2 decks slanted type 2.) 180 t/h capacity 3.) 10 HP motor (2 sets) 4.) Screen sizes to customer specifications C. HOT BIN 1.) 4 sections with over-flow exit with temp read outs on bins 2.) 20 tons (423 cubic feet capacity) D. AGGREGATE WEIGHING 1.) Load cell type 2.) Accumulative weighing method 3.) 2 LB (min.) – 5,500 LBS (max.) 4.) 4 ton (77 cubic feet weighing hopper) E. ASPHALT WEIGHING 1.) Load cell type 2.) Individual weighing method 3.) 0.4 LB (min.) – 880 LBS (max.) 4.) 1700 lb. (17 cubic feet weighing hopper) F. FILLER WEIGHING 1.) Load cell type 2.) Individual weighing method 3.) 1 LB (min.) – 880 LBS (max.) 4.) ½ ton (10 cubic foot weighing hopper) 5.) 50-ton dust silo G. MIXER 1.) Twin shaft pugmill type with excess door 2.) 4,400 LB/batch 3.) 100 HP motor 4.) External temp gauge H. ASPHALT SPRAY UNIT 1.) Jacket type geared pump 2.) 20 HP motor 5.) 250 gal/min 6.) With return built in to return A.C. to tanks I. AIR COMPRESSOR 1.) 15 HP 2.) Air cooling type J. PORTABILITY 1.) Completely portable on a dual axle assembly 2.) Includes four 10:00 X 20 tires and wheels, fifth wheel pin, air brakes, turn and stop lights and mud flaps V. ASPHALT SUPPLYING EQUIPMENT A. ONE ASPHALT TANK’S 1.) Horizontal type 2.) 30,000 gallons temp controlled separately 3.) Heated via heated coil circulation pipes from the hot oil heater 4.) 2” (t) insulation level gauge and dial type temperature gauge B. ASPHALT SUPPLY PUMP (TANK TO WEIGHER) 1.) Jacket type geared pump 2.) 10 HP motor 3.) Strainer is the filtering device C. ASPHALT PIPING 3” x 4” double piping material with necessary valve D. PORTABILITY 1.) Completely portable on a Tandem axle assembly 2.) Includes eight 10:00 X 20 tires and wheels, fifth wheel pin, air brakes, turn and stop lights and mud flaps VI. HOT OIL CIRCULATION EQUIPMENT A.HOT OIL HEATER (Mounted on one A.C. Stand) 1.) Horizontal type 2.) 2.4 million BTU 3.) Heating oil capacity 555 gallons 4.) Includes hot oil heater control panel and automatic temperature regulator with full-automatic 24 hr timer B. BURNER 1.) Automatic high-pressure spray type 2.) 1 HP motor C. CIRCULATION PUMP 1.) Water cooling type 2.) 7 HP motor 3.) Cooling water pump at 5 -gallons/min. ¼ HP D. PIPING 2” piping material VII. ELECTRIC POWER AND CONTROL SYSTEM EQUIPMENT A. SPECO COMPUTER CONTROL PANEL IS DESIGNED FOR AUTOMATIC AND MANUAL OPERATION OF PLANT IN INDUSTRIAL CONDITIONS 1.) Vibration proof and table type panel 2.) Range of operating temperature is 32ºF - 130ºF 3.) Range of operating humidity is 30% to 85% 4.) Controlled by programmable computer and controller 5.) Main functions a. Input various mixing ratios b. Jogging control c. Batch counting and discharge signaling d. Digital indicator and bar graph of CRT screen for weighing and discharge conditions e. Numerical control by CRT screen f. Preserving its input data when power supply is cut off B. ELECTRIC POWER DISTRIBUTION BOARD 1.) For the safety protection of equipment such as circuit breakers, contactors (magnetic switches) 2.) Thermal relays are used C. PRINTER 1.) Used to check and print each control function of computer panel during the operation of the plant 2.) Vibration proof and pin type 3.) Range of operating temperature is 32º - 130ºF 4.) Range of operating humidity is 30% - 85% 5.) Main functions are printing the serial number, date, month, year, time (hour, minute), ton/batch and its total, weighing value of each material (aggregate, filler, asphalt D.CONTROL SYSTEM FOR THE DRYER/BURNER 1.) Remote ignition control 2.) Valve opening ratio is displayed on the CRT screen 3.) Temperatures of dryer and hot bin are displayed on the CRT screen and controlled by control screen 4.) Efficiency of fuel oil consumption increases by 10% with this system E. ELECTRIC WIRING AND CONTROL ROOM 1.) Various cables are used for each purpose as E.V. cable for driving parts, VCT cable for control parts and shield cable for load cell 2.) Portable type control room 3.) 8.9’ wide x 18’ long x 8.4’ high is the size 4.) Inside finished with 2” insulated material 6.) One door three windows and office quality lighting 7.) Easy disconnects for wiring. F. PORTABILITY 1.) Completely portable on a single axle assembly 2.) Includes eight 10:00 X 20 tires and wheels, fifth wheel pin, air brakes, turn and stop lights and mud flaps VIII. DUST COLLECTING EQUIPMENT A. EXHAUST FAN 1.) Plate fan type 2.) 120 HP motor for bag filter system B. BAG FILTER 1.) Air pulse type 2.) Designed to handle 28,000 CFM at an air to cloth ratio 5.25:1and an operating air temperature of 250-350° F 3.) Nomex filter bags 4.) Complete ductwork 5.) Dust removal conveyor 6.) 120 HP air compressor C.ADDITIONAL ITEMS 1.) Screw conveyor a.) Screw type b.) 12” diameter x 19’ long c.) 10 tph capacity d.) 5 HP motor 2.) Automatic control panel 3.) Pulse timer—automatic control F. PORTABILITY 1.) Completely relocatable on jack legs D. (2) ADDITIVE SILO'S 1.) 300 BBL 2.) Skirted to the ground 3.) Rotary Air Locks 4.) Hi and low bindicators 5.) Ladders and platform 6.) 40' x 12" enclosed augers to plant. Again, this is a complete VERY LOW TONNAGE plant (under 25,000 tons). This is a complete ready to go to work plant. Originally bought (AND PAVED) to pave an Asphalt Dam in the middle of an national forest with very tight pavement spec's. The original cost of the plant was over 1.4 million. VERY rare plant priced for quick sale... Plant on ground and lined up ready for load out.

More Photos:



Stationary 6,000lb - 7,000lb Simplicity Batch Plant

Brand: Simplicity Output: 6,000-7,000lbs Portability: Stationary 125hp pugmill 20hp screen 4 hot bins 50hp bucket elevator duel chain 17.5"x9" buckets Dryer Approx. 8'x32' Cradle chain driven 150hp motor w/gearbox Reject chute Some patching done. Dryer thickness- burner end, .42/.41/.35 Gencor Burner, 39,000cfm Ran on oil 60hp blower 4 Cold feed bins 30" 3hp feeders 30" 7.5hp gathering Bin dividers Mesh liners Bin 1 has some minor holes Incline conveyor 7.5hp 28" belting Baghouse Herman Grant 3 section Airpulse 42 pulsars Twin 125hp fan. (1 motor missing) 7.5hp auger Rotary valve 12" auger feeds bucket elevator LEROI compressor A.C. System 1 -1971 Chattanooga tank s/n 17870-02-1 Model 120-as Approx. 3 feet of ac in tank Heater w/ power flame burner Honeywell control 2-8000-gallon fuel tanks 1-10,000-gallon fuel tank small tack tank Controls- NO CONTROL HOUSE Computer controls in block building w/ mcc center All wire above ground PLANT STILL STANDING

More Photos:

Stationary 10,000lb Gentec/CMI Batch Plant

Make: Gen-Tec/CMI Year: 1994 Output: 10,000lbs Portability: Stationary Cold Feed: No bins Couple micro feeders 23 1/2" conveyor 20hp motor New belt 2009 cold elevator: New drive in 2007 New gearbox 2008 Dryer: 9'x34' drum New flights 2 trunnions and bearings in 2008 New drive in 2009 Cyclone: 12' diameter 22' height Burner: sj520 Hauck Hot Elevator: CMI st-500 450tph capacity Screen: Diester screen deck Model 5514005 5'x14' Hot Bin: 4-bins 45ton capacity Pugmill: New bearing, Drive gears, and heatbox in 2009 A.C: A.C bucket and scale Injection pump Transfer line 4' injection valve Baghouse: Griffen dusty dustless pulse-jet 75kscfm All new bags in 2009 Joy Tristar screw compressor Exhaust stacks and fan: 54' diameter stack NY blower 200hp Dust silo: Approximately, 1,000bbl Hold 100tons of dust CMI silo system: Model #h5-167 New 24' transfer auger (2) 150t silo 28" slat conveyor 75hp motor Cardinal scale 80ft A.C. Systems: (2) 14,000g 18,000g Tanker loads Viking A.C. pumps Hi-way hot oil heater 1.5mbtu 3" jacket lines on the piping network Other: Siemens starters, breakers, size 1-5 contacts, libra generation 3 batch/loadout software.

Stationary 12,000LB McCarter Batch Plant

Make: McCarter Output: 12,000lb Portability: Stationary Batch System: McCarter 12,000 lb 200 hip Motor and Dodge TDT 1225 Drive Hot Bins: 4 120 Tons Hi and Lo Bindicators Diester Screen 5'x16' x 3.5 Decks Inclined 25 hp Motor Hot Bucket Elevator: 18"x10"x 10.5" Buckets Driven by a 40 hp Motor and Dodge TD 825 Drive Rex ES 856 Chain Dryer: 9'x40' Driven by Two 60 hip Motors and Four TDT 725 Dodge Drive Gencor Ultra Flame Burner Model UF 2-100 91 Million BTU's 52,000 cfm Blower Burner Control Burner is a Combo Oil/Gas. Cold Feed System: 6 50 Ton Cold Feed Bins with Three F 330's and Two F 380's Syntron Feeders and One Belt Feeder 30" Main Feed Conveyor One Lime Silo with Dust return System to plant One Knock Out Box with return Feed System Dust Collection: Meeker Dust Collector Jet Pulse Approximately 700 Nomex 14 oz Bags, 69,000 cfm One Air Compressor One Exhaust Fan Driven by a 150 hp Motor and Drive Exit Fan Damper Stack A.C. System: Three 30,000-Gal Electric Heated Asphalt tanks Asphalt Pumping System Asphalt Piping One 20,000-Gal Fuel Tank All Motor Starters, Wiring and Controls. This plant was last tested in March of 2018. General over all condition of this plant is Very good. There is a NEW set of Bags for the Baghouse......The Dryer shell is 90%. Flights are in very Good cond

More Photos:

Stationary 6,000lb Barber Greene Batch Plant

Make: Barber Greene Output: 6,000lb Portability: Stationary BE 60 x 258 6,000 lb. BATCH TOWER Diester horizontal screen deck Extended hot bins Hot Bucket Elevator Chain and Buckets in good condition DC 65 X 253 (8’x 32’) Dryer Shells has some patching Trunnions, chain, sprockets in good condition 2001 Genco AF-40 combo burner. Set on natural gas Barber Green burner controls CF-130 L237 Barber Greene Pulse Jet Baghouse 41,000acfm 600 51/4” x 12’ bags in good condition PN 40 x 227 (4) bin Barber Greene Cold Feed 9’ x 13’ variable speed 3hp D.C motors with bin extenders. (2) with bin vibrators 24” x 8’ feed belts 32” collecting belt 32” x 60’ incline belt from cold feed to dryer 3 feeders ok, one needs rebuilding Inferno-Thurm Electric A.C. Tank 20,000 gallons Skid mounted Stationary Control House AB-500 Seltec computer controls Barber Greene control stations M.C.C (Located under control house) Barber Greene Dust Silo 500BBL (Square silo) Binvent (Baghouse) Pneumatic weigh pod with rotary air lock Misc. Parts

More Photos:

Stationary 1 Ton Cedarapids Batch Plant

Make: Cedarapids Output: 1 ton Portability: Stationary Cold Feed: Four (4) 8'x 8 aggregate bins with variable syntron feeders with controllers 24" collecting conveyor and 24" x48' elevating conveyor to a 4’x 5’ scalping screen to an incline belt. Dryer Drum: Cedarapids 5' x 24 dryer drum with bull gear drive 40hp gears new in 2005 Genco AF-25(new flights 2003) Batch Tower: Cedarapids tower and bucket elevator #2000 mixer with 75 hp drive mixer rebuilt April 2004 3 1/2 deck flat screen mixer sped up to mix 80 tph per hour @ 30 second mixing time Air System: 30,000 acfm baghouse (new bags and cages 2002) Controls: 10'x10' uniframe control house with manual controls Mounted in block building A.C. System: 2-12,000 coiled tanks with hot oil heater 3" jacketed ac pump with 15 hp motor Plant cleaned and painted. Plant missing all wire.

More Photos:

Stationary 10,000lb H&B Batch Plant (Partial)

WILL SELL COMPONENTS SEPERATELY! Make: H&B Year: 1989 Output: 10,000lb Portability: Stationary Low tonnage 5'x16' diester 3 deck screen model UHFP-3516 4 Hot bins 150HP pugmill with a lot of spare parts 40HP Bucket elevator with 10"x20" buckets and 128' chain. 68000cfm baghouse with some bags and cages stored in Conex box. 9'4" x 40' HB dryer w/ Gencor AF 135 burner. No bins or tanks. Plant has low tonnage plant. All equipment on ground and ready for load out.

More Photos:

Stationary 4,000lb Standard Steele Batch Plant

Make: Standard Steele Output: 4,000lb Portability: Stationary Cold feed system: Two bin cold feed missing plant feed conveyor Plant needs feed conveyor to the dryer Rap system: Bin and conveyor Dryer: Standard Steel 6' x 28' with gravity feed inlet Bottom left discharge 50 hp wrap chain drive assembly. (No Burner) Dust system: Stansteel Baghouse Portable Frame (No Axles) Reverse Air (Missing Reversing Fan) Triple Auger Discharge (Look To be almost new) Front Knock Out Box with Independent Auger Discharge 44,170 ACFM 8,834 SQFT of Cloth Single 150 Hp Motor with New York Blower Size 44 PLR Tower: Vertical bucket elevator 2 ton tower with Symons 5' x 14' screen 4,000# twin shaft pug-mill with 100 hp drive motor Four hot bins Pug-mill has new shaft on site Liquid asphalt: Viking plant pump. Fuel system: Skid mounted 15,000-gallon horizontal storage fuel tank Process heating pre-heater Control house: Auto-mated plant controls Starters, and breakers are in a NEMA enclosure. Control house is located on the tower with air and heat, plant has above ground wiring.

More Photos:

Stationary 6,500lb McCarter Batch Plant

McCarter 6,500lb Batch Plant 1 Used, McCarter, 6500 lb., Batch Plant with Four Hot Bins, 5 x 16 Simplicity, 3.5 Deck, Horizontal Screen, 1 Viking Asphalt Metering Pump 1 Hot Bucket Elevator with 8” x 18” Buckets. Good Buckets 1 8’ x 34’, Gear Drive, Insulated, Gravity Feed, Counter Flow Dryer. Good Shell. 1 Hauck Burner, Star Jet , 360, Oil and Heavy Fuels 1 Hot Oil Pre Heater, Hy-Way 50 KW, 1 Pre Cleaner, Knock Out Box with Supports 1 Over Sized, Baghouse with Bottom Screw Conveyor and Smoot Vane Air Lock. 1 Quincy Air Compressor 1 New York Blower Exhaust Fan and Motor 5 12’ x 15' Cold Feed Bins with 30” x 5’ Belt Feeders 1 30” x 130’ Collecting Conveyor, 1 30” x 100’ Dryer Feed Conveyor 1 60 Ton Dust Silo with Dust Blower, 5” line System with Truck Feed 1 20,000 Gal. Coiled, Asphalt Storage Tank with Pumps 1 25,000 Gal. Coiled, Asphalt Storage Tank 1 30,000 Gal # 2, Fuel Oil Tank, Fuel Oil Pump 1 16,000 Gal # 5, Waste Oil tank 1 300 Gal Tack Oil Tank with Tack Oil Pump 1 Carlin Hot Oil Heater Model 701 CRD Burner. One Dayton Hot Oil Pump 1 BlackMere 4” x 4” Asphalt Pump 1 Asphalt Unloading 3” x 3” Asphalt Unloading Pump Good Condition Misc. Spare Parts All Books, Manuals and Prints. Over all condition is in good running shape.

More Photos:

Stationary 5,000lb Stansteel Batch Plant

Make: Stansteel Output: 5,000lb Portability: Stationary Batch Tower: 5,000LB Stansteel Cold Feed: Two bin cold feed Skid mounted Motors & drives Four bin cold feeds Motors & drives Collecting conveyor Dryer: 7’ 6” x 32’ dryer Frame, drives and burner assembly Baghouse: Outlet duct, fan, motor, dampener, stack, and auger Hot elevator Control house Some controls A.C System 20,000-gallon liquid asphalt storage tank Batch plant style lime storage unit Plant still erected

More Photos:

Stationary 5,000LB Cedarapids Batch Plant (Tower/Pugmill Only) - Stationary

Make: Cedarapids Output: 5,000lbs Portability: Stationary ONLY TOWER/PUGMILL Tower: 5,000 lb Model: H-50c Pugmill: 125 hp motor Pugmill has 1 season on shaft, bull gears, tips and shanks DOWN ON THE GROUND READY TO LOAD.

More Photos:

Stationary 5,000 Cedarapids Batch Plant/Drying Package

Brand: Cedarapids Output: 5,000lbs Portability: Stationary Cedarapids Batch 2.5 Ton 2.5 Deck Screen Rebuilt Hot Bucket Elevator Cast Iron Buckets Recent New Chain before shut down 2 seasons ago Dryer McDermot 6' x 33' Double Hauck Burners Oil/Gas with Burner Control Center Discharge Air Gear Drive Gas Train Recent New Flights and Combustion Chamber before shut down 2 seasons ago Micro Pulse Air Jet Pulse Baghouse. 54,000 cfm. Bottom Screw 2 Gardner Denver Air Compressors with Air Coolers Fan to BH 250 hp Dust Return system to 350 BBL Dust Silo. Matrane Pressure Pot Cold Feed Bins Five 10 x 10 Bins with Syntron Feeders Model FH 27 & 33 Cold Bucket Feed to Dryer Allis Chalmers Heat Control Baghouse Valve. Protects baghouse from overheating. Libra Computer and Motor Controls on Tower New Combustion Chamber

Semi-Portable 4,000lb Stansteel Batch Plant

Make: Stansteel Output: 4,000lbs Portability: Semi-Portable Stansteel 4,000 lb. batch tower- Stansteel (Model: tm 40 sn#566) Portable (3 axles) Screen Hot bins and bucket elevator come off and tower drops down for transportation 5,000 lb pugmill (60 cuft pugmill) 125 hp pugmill motor 4-hot bins with bindicators f-tech screen deck hot elevator drops down for transport reject chute Portable (7’x 22’) standard steel dryer cradle chain driven Three axles Model: 722 S/N: 5665 Gencor AF-40 burner set up to burn diesel both The tower and drum are on one load Drum thickness: .25/.31/.33 Triple axle. 4 bin cold feed Variable speed 8’x 10’ bins Stansteel 3hp d.c. reliance motors 24”x 5’ variable speed feeders 30”x 50’ collecting belt Missing belt collapsible bin dividers with loading side bulkhead. Portable double cyclone system 10” auger to hot elevator Control House Single axle Genco Genie burner controls Push button start Stop station MMC center mounted on tower plant still erected

More Photos:

Stationary 4,000lb Standard Steele Batch Plant (Tower Only)

Brand: Standard Steele Output: 4,000lb Portability: Stationary Standard steel tower: 2 ton (4,000 lb) rebuilt pugmill 10 tons on complete rebuild (4) 35-ton hot bins Hi-Lo-Mid Bindicators Air operated gates 4’ x 12’, 3 deck horizontal screen 4-ton batcher under tower Hot bucket elevator
