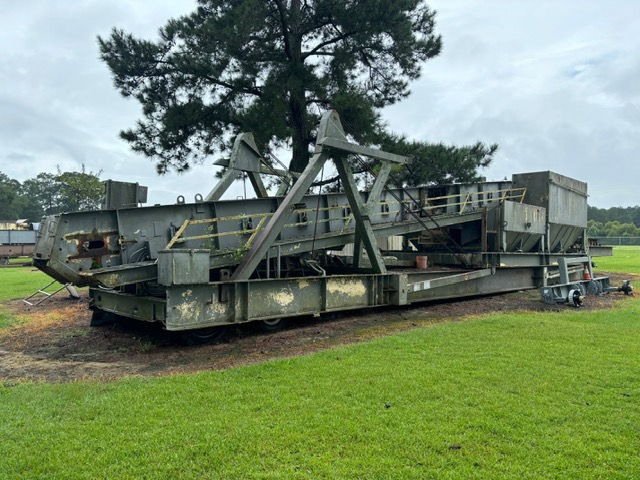

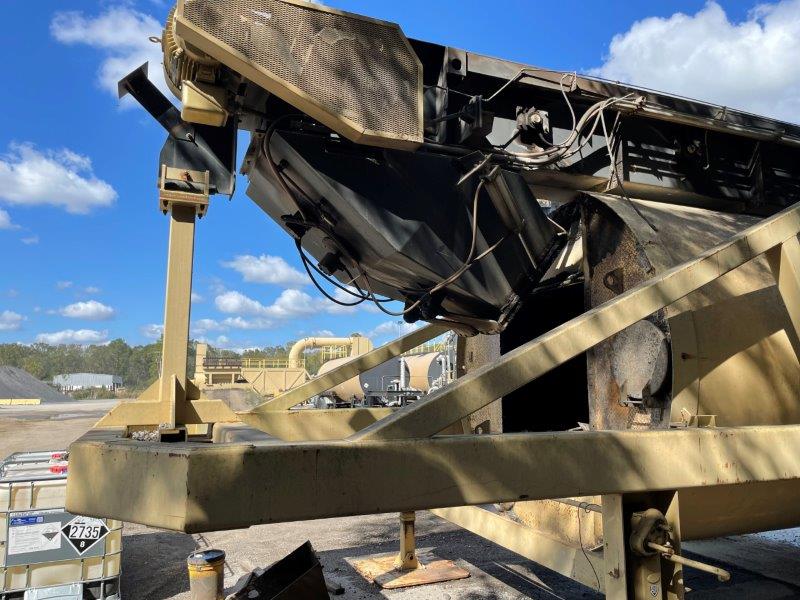

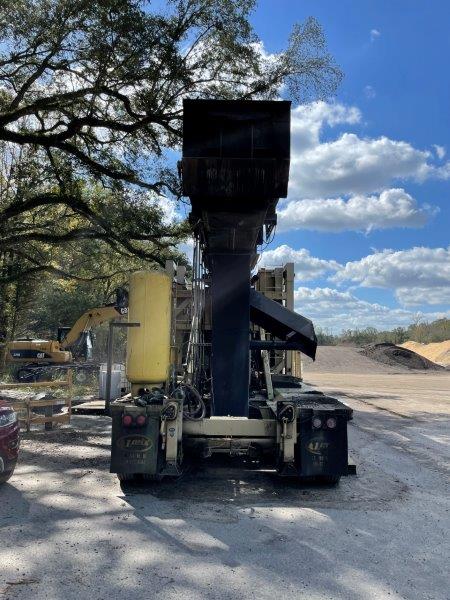

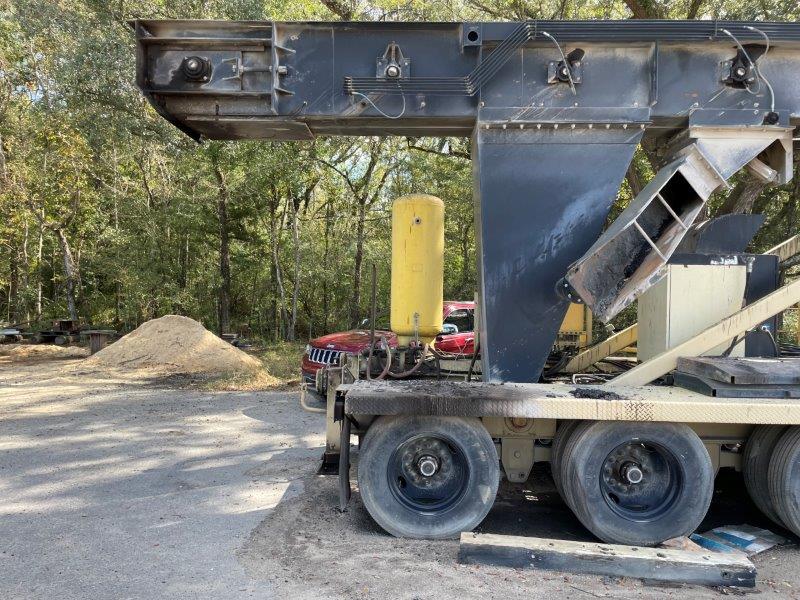

Gencor Self-Erect Silo System

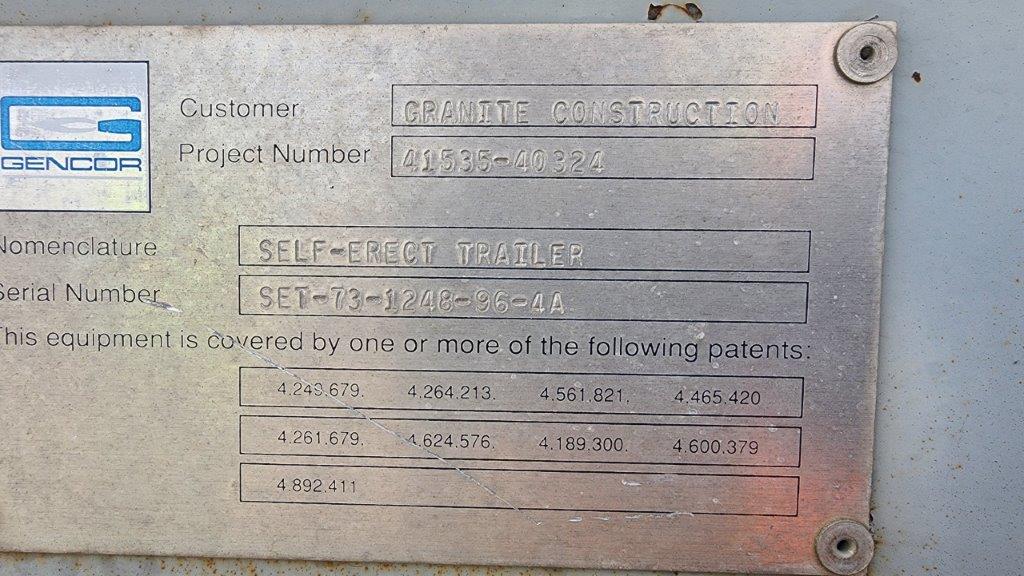

Project number# 41535-40324
SR# SET-73-1248-96-4A
Year 1996
(Owned By Tri-State Equipment Services)
Single piece system includes an 100 Ton nominal capacity silo with a 36” wide drag slat, Factory rated at up to a nominal 400 TPH. A Quad (4) axle portability assembly rated to move in California .
Additional features included:
Electric Heat On Silo Cone And Gates.
Hydraulic Erection System With Operator Control Levers. (1 Ram Has A Leak)
Heavy Duty, 75 HP Motor And REX Reducer For Slat Conveyor Drive.
Nominal 36” Wide Slat Conveyor With 6” Pitch, Single Strand Roller Chain.
Slats Measure Nominally 6” Tall x 32” Long.
Cast Wear Liners On Floor.
Floor Mounted Mix Reject Chute On Drag Conveyor.
Hydraulic Leveling Cylinders For Entire System.
High / Low Level Bindicators
Electrical Switch Gear Nema Panel
2 Air Holding Tanks
Removable Has Booster Axle.
NO Hydro Pack Included
This unit is certified to be moved in California with a removable tandem axle set up.Road Readiness needs to be checked

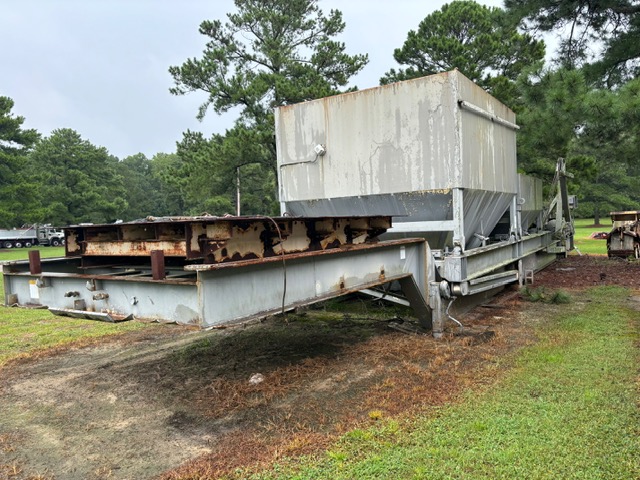

Gencor Self-Erect Silo System
Model SET-71-1273-95-4A.
Year 1995
Single piece system includes an 100 Ton nominal capacity silo with a 36” wide drag slat, Factory rated at up to a nominal 400 TPH. A Quad (4) axle portability assembly rated to move in California .
Additional features included:
Electric Heat On Silo Cone And Gates.
Hydraulic Erection System With Operator Control Levers. NEW CYLINDERS
Heavy Duty, 75 HP Motor and Reducer For Slat Conveyor Drive.
Nominal 36” Wide Slat Conveyor With 6” Pitch, Single Strand Roller Chain.
Slats Measure Nominally 6” Tall x 32” Long.
Cast Wear Liners On Floor.
Floor Mounted Mix Reject Chute On Drag Conveyor.
Hydraulic Leveling Cylinders For Entire System.
High Level Bindicators.
Electrical Switch Gear Nema Panel
Air Compressor And 2 Air Holding Tanks
Removable Axle Pack Has Had New Air Bags And Brake Work.
NO HYDRAULIC PACK
Make: Gencor
Gencor Self-Erect Silo System
SN: SET-63-1106-92-3A
Year 1992
Single piece system includes an 100 Ton nominal capacity silo with a 36” wide drag slat, .
Additional Features Included:
Electric Heat On Silo Cone And Gates.
Hydraulic Erection System With Operator Control Levers.
Heavy Duty, 75 HP Motor And Reducer For Slat Conveyor Drive.
Nominal 36” Wide Slat Conveyor With 6” Pitch, Single Strand Roller Chain.
Slats Measure Nominally 6” Tall x 32” Long.
Cast Wear Liners On Drag Floor.
Floor Mounted Mix Reject Chute On Drag Conveyor.
Hydraulic Leveling Cylinders For Entire System.
High / Low Level Bindicators.
NO Removable Booster Axle.
NO Hydro Pack included
Missing Some Wire
Price is in USD

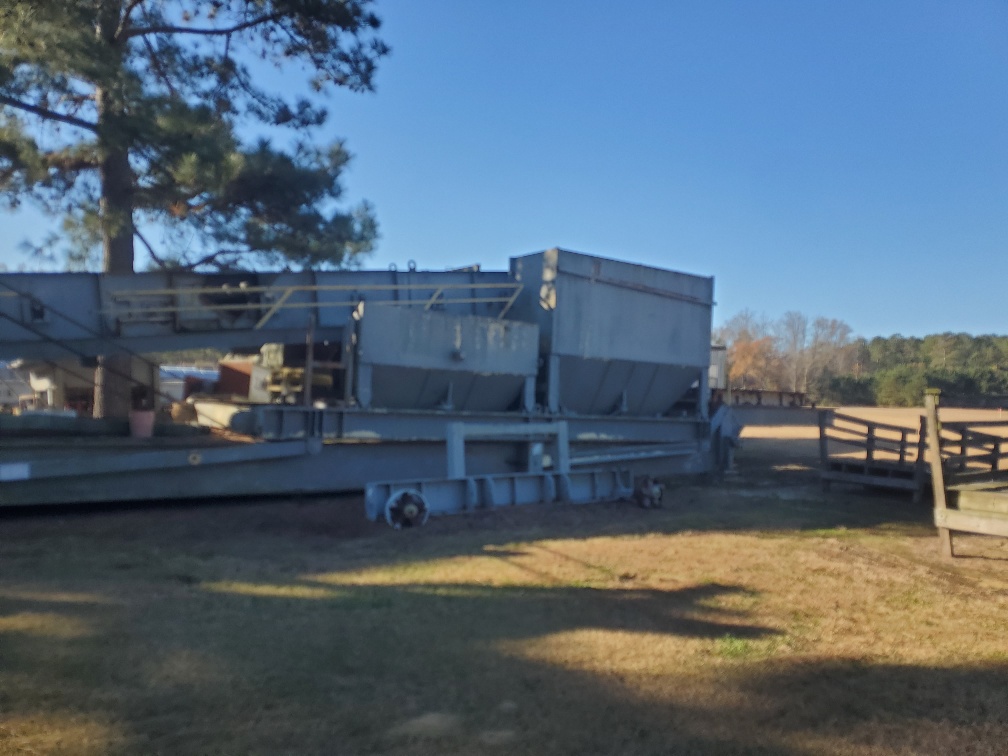

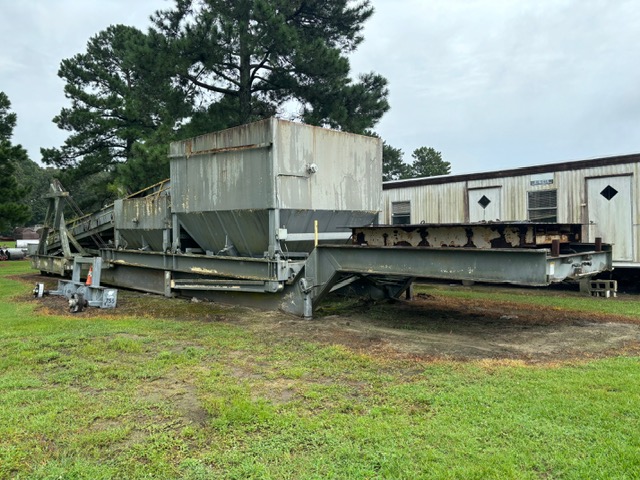

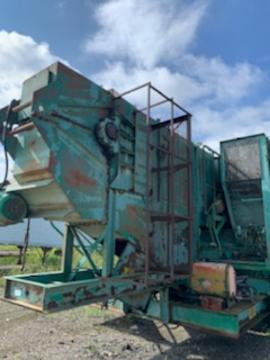

Astec self-erect silo system
This portable astec self-erect silo system is in nice condition.
• two bin storage both bins are on independent weigh scales
• main bin 65 ton
• secondary bin 30 ton
• the drag slat conveyor is 300+ tph.
• this unit will need new chain and the sprockets moved

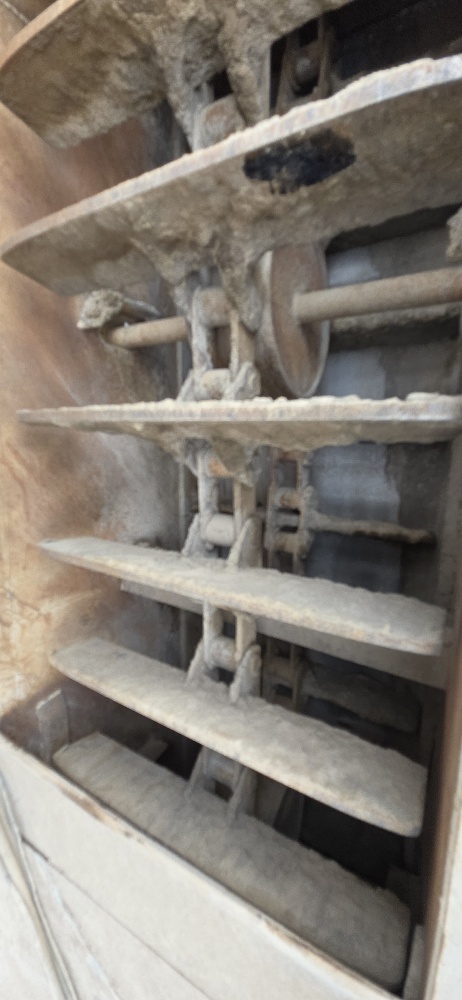

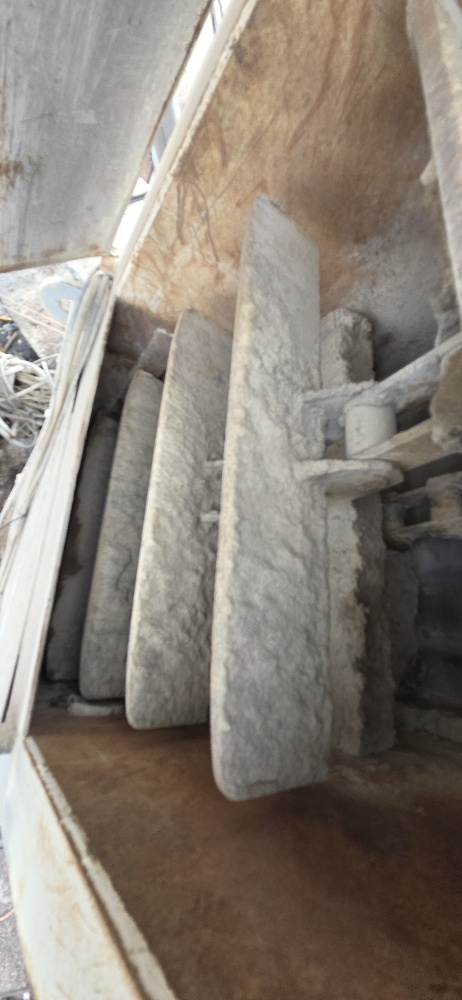

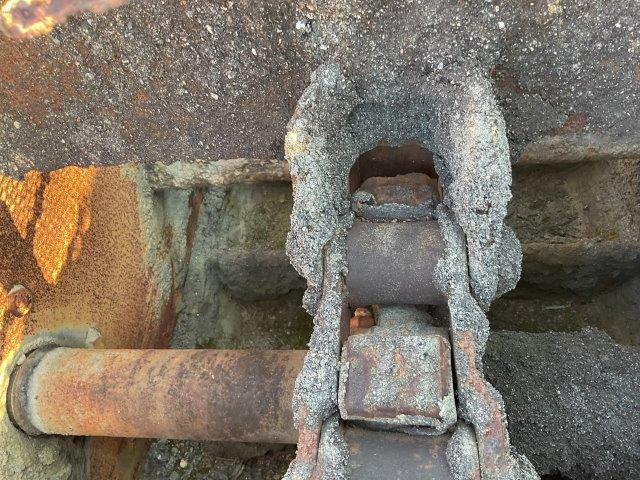

• "the chain "single 4” pitch roller chain uses 21” x 6” x ¾” slats" was shortened and sprockets moved to accommodate a jumper slat "
• the unit has a ni-hard floor with side wear protection.
• sliding bearings on the side walls help insure long chain life.
• a 50 hp motor provides the power (not on unit)
• the batcher is mounted on the end of the drag conveyor.
• second hopper is fed through the reject chute
• heavy abrasion resistant steel liners are in the cone area.
• an air compressor is mounted tank is mounted on the side

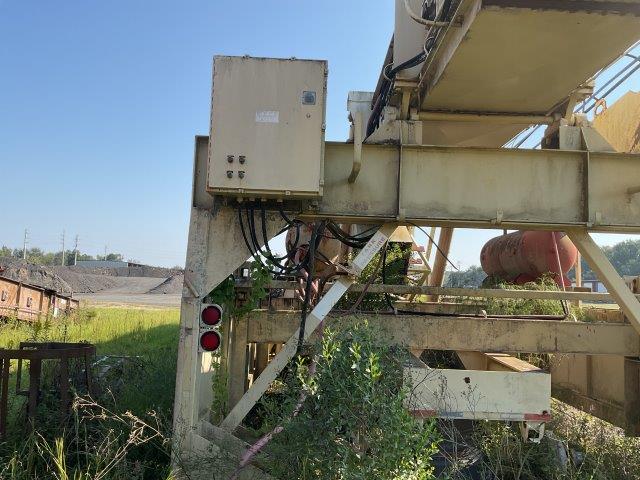

• electrical is mounted in a side nema cabinet.
• the suspension is quad axle
• the system is cable erected

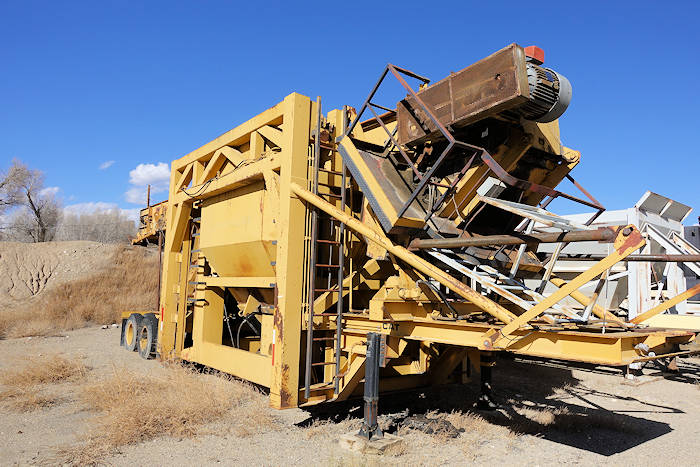

1985 CAT Model SE-653; 65 Ton Self-Erect Silo Order # 02985 S/N 138
65 Ton Surge Bin w/ Reverse Weigh
500 TPH Slat Conveyor w/ 36” Slats; Double Chain
Reject Chute
75 HP Motor w/ Gear Reducer
Air Compressor w/ Tank
Cable Erect w/ Power Pack
Two Axle Carrier
SEB
Came Of new plant
CMI SE-65
3 Axle
400tph Drag, looks to be in decent condition.
Slat has reject chute
Double chain
Dodge reducer 50hp drive
Bin looks to be in good condition
Has cable

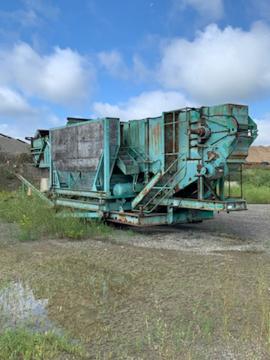

TEREX (CMI) SELF ERECT SURGE BIN
YEAR 2007 450tph
MODEL SE 195
SN# 233
95 TON SURGE BIN
REVERSE WEIGH
SPLIT DISCHARGE
SLAT CONVEYOR 60’
30” SLATS DOUBLE CHAIN
36” WALK WAY
REJECT CHUTE

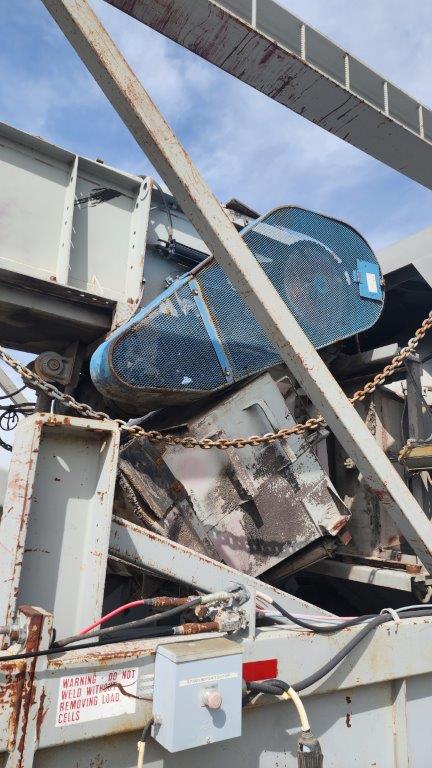

60 HP MOTOR AND REDUCER
HYDROLIC ERECT - LOCKING CYCLINDER VALVE NEEDS REPAIR OR REPLACE

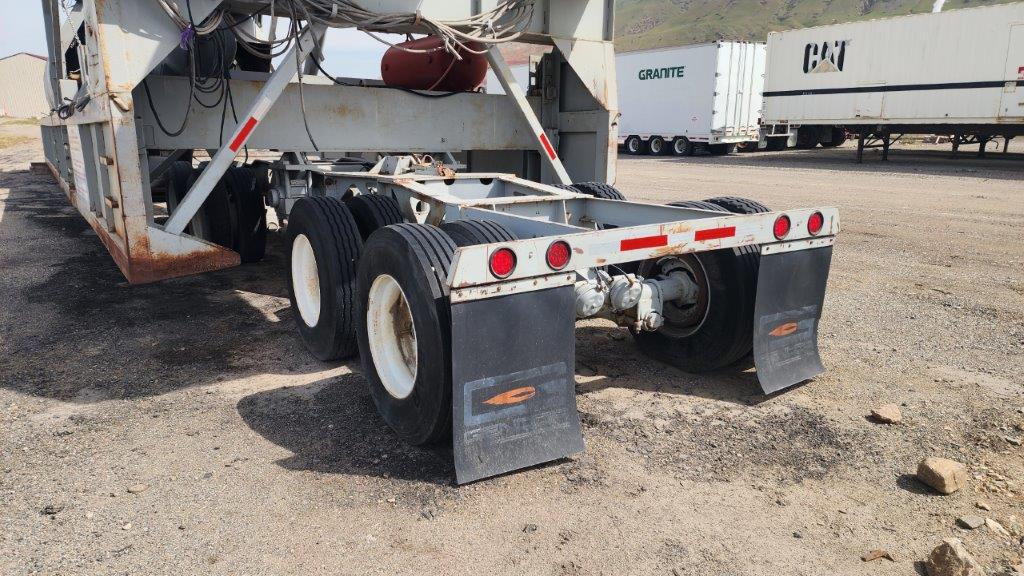

TRIPLE AXLE (TIRES APPEAR TO BE IN GOOD CONDITION WITH MUD FLAPS AND LIGHTS)
WIRE WITH QUICK DISCONNECTS
THIS UNIT IS DOWN AND READY TO MOVE. THIS UNIT APPEARS TO BE ROAD READY

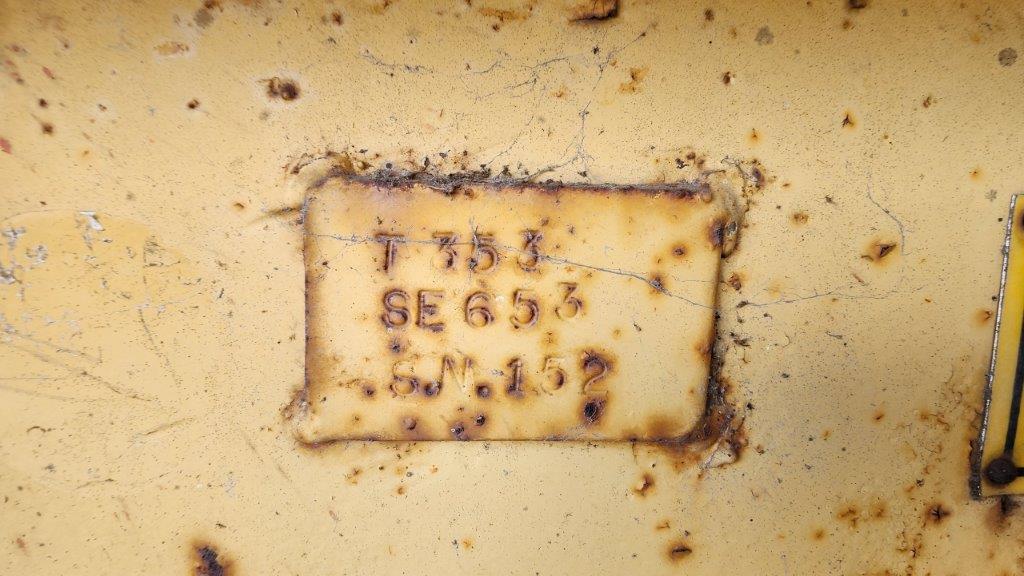

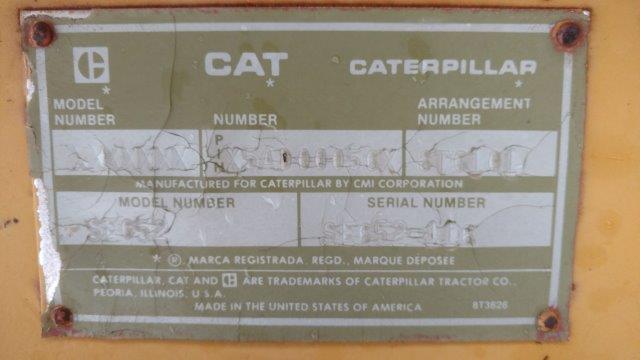

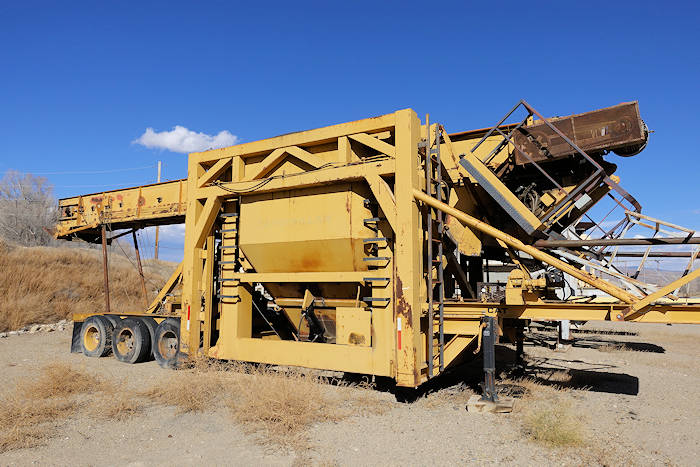

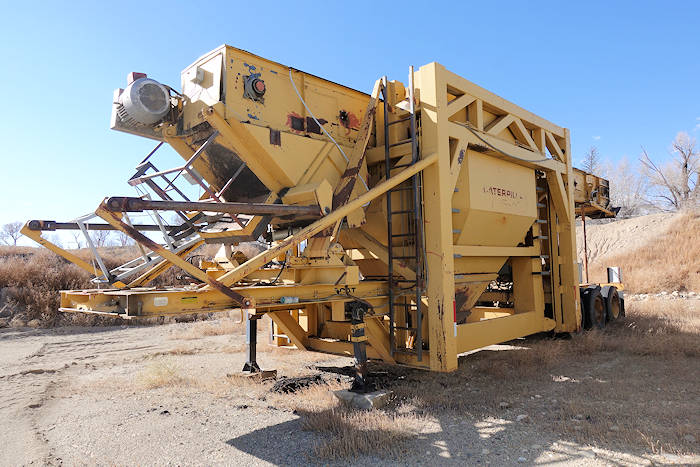

Make: CAT
Year: 1986
Model: SE-653
S/N: 152
Capacity: 65ton
. 65 Ton Surge Bin w/ Reverse Weigh
. 500 TPH Slat Conveyor w/ 36” Slats; Double Chain
. Reject Chute
. 75 HP Motor w/ Gear Reducer
. Air Compressor w/ Tank
. Cable Erect w/ Power Pack

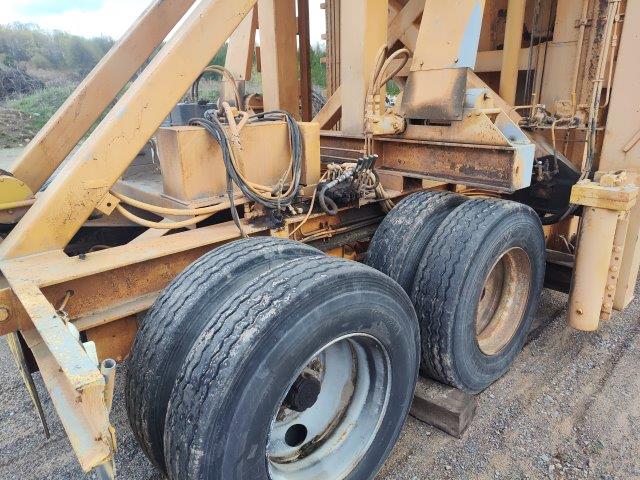

. Tandem Axle
(Tired appear to be in good condition, with mud flaps and lights)
. Wire with Quick disconnect
. On ground and ready to load

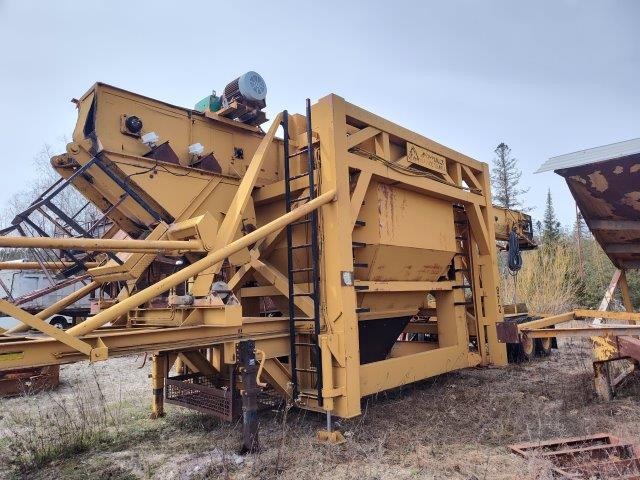

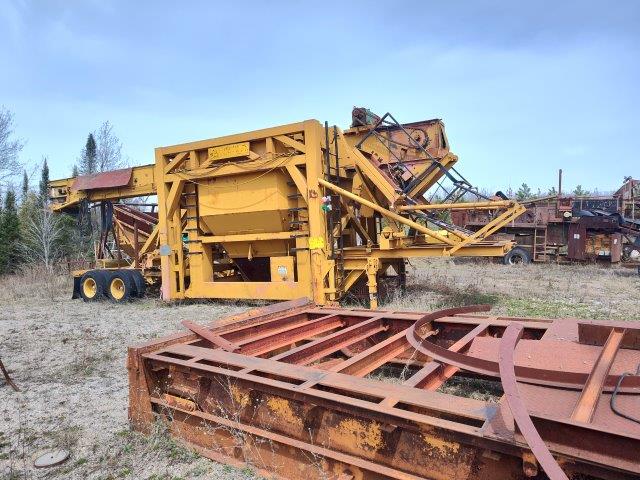

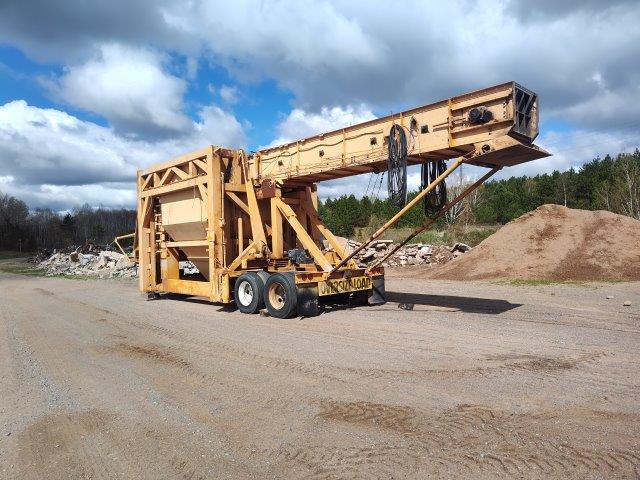

Make: Barber Greene
Portable
50 Ton
This Portable Self Erecting Barber Greene Bin and Bucket Elevator is located in Northern Minnesota. It is used occasionally as a spare. Load Cells. **The speed reducer MAY not be available upon purchase.**
