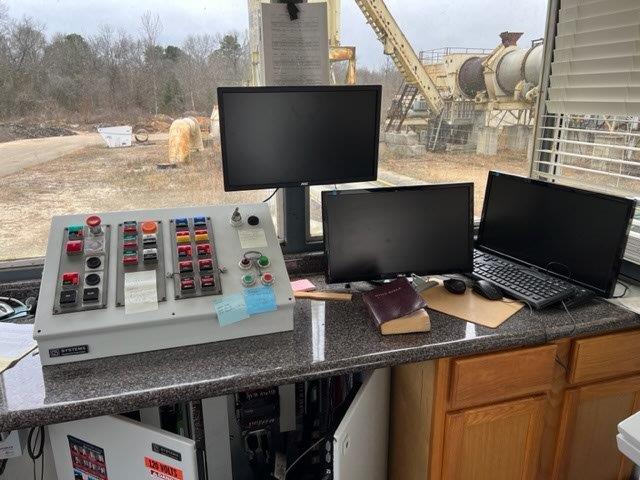

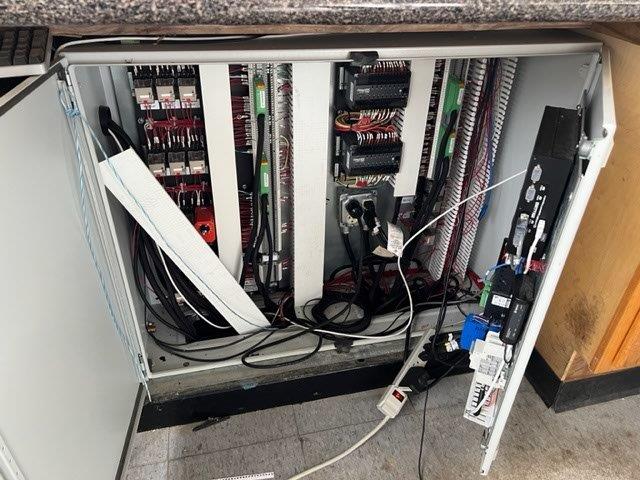

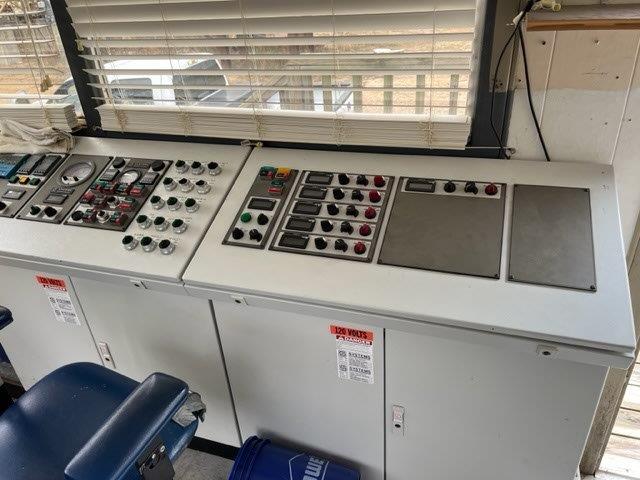

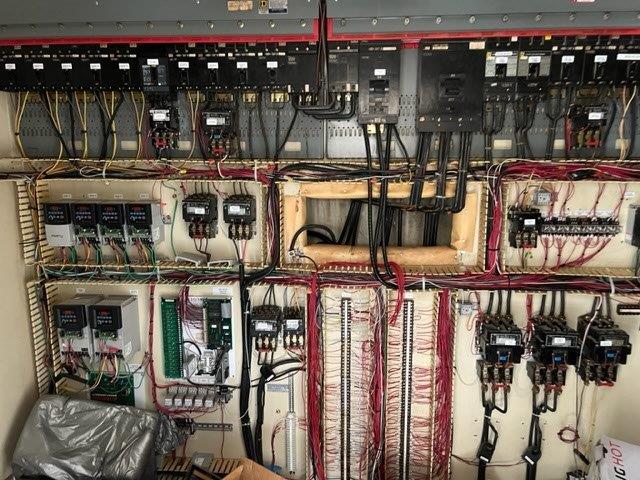

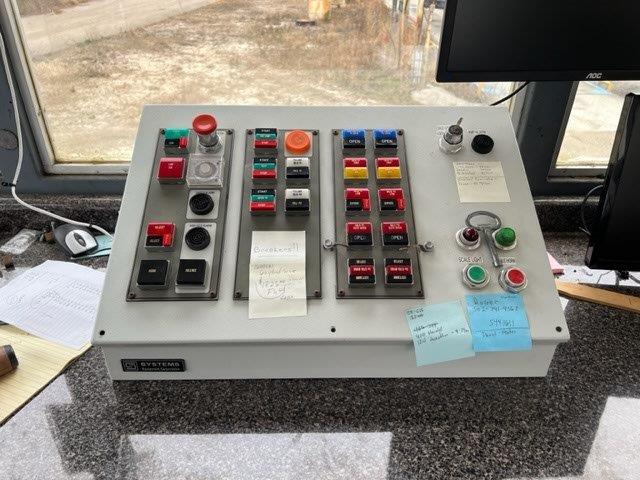

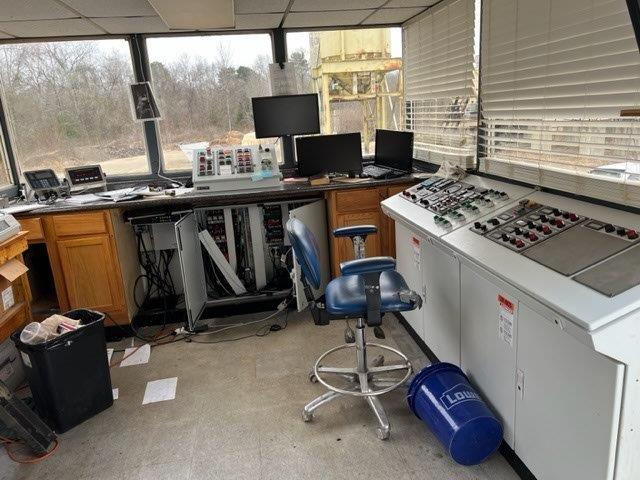

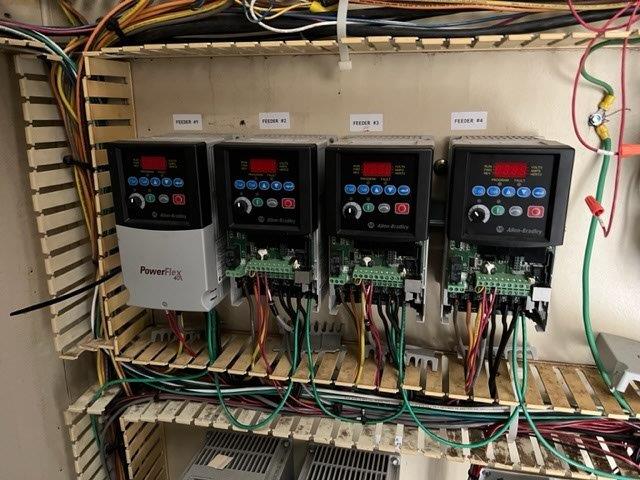

The control house is 12’ wide x 27’ long and is 12’ 6” tall. The operator room is elevated and has 360 degree visibility; double pane windows. The house is all steel construction, the back room has all the motor control center. Furnas individually boxed motor control center. The cold feed controls are in their own NEMA cabinet as shown in the photos. Under the operator platform is a 3’ tall storage space. The house has never leaked rain water. All start stop cabinetry is included along with Astec PM 96 controls. Currently the house functions with a 400 TPH Gencor counterflow drum mixer with Ultra II burner, two silos with 400 tph drag and 400 tph bintop conveyor, 7 bin cold feed system with double deck screen and belt scale conveyor, baghouse, 2 rap bins with breaker, screen and belt scale conveyor, hot oil heater, two AC tanks, etc. This is probably more than what you will be operating.

PORTABLE CONTROL HOUSE-AUTO BLENDING CONTROLS, EZ BLEND COMPUTER CONTROLS. MCC WITH BUCKETED STARTERS ABOVE GROUND WIRING WITH QUICK DISCONNECTS. WAS RUNNING A 6,000LB BATCH PLANT. ROAD READY. HAS PLANT WIRE.

Stationary Control House 8' x 20' Control House 280 Degree View Air and Heat Unit Aesco Madsen Control System (Burner Controls, 3 Cold feed Bin Controls, 1 Rap Bin, 2 Silo Load Out, A.C. Controls) M.C. Center (This plant was set up to 400 TPH CMI plant with 400 tph Slat, 70,000 ACFM Baghouse, 3 Cold Feed, 1 Rap Feeder, 2 A.C. Tanks)

CMI 10.5’x 20’, single axle carrier, side door, steps, glass on 3 sides, MCC in rear of control room, heated/air conditioned. Starters for 150HP fan and 75Hp drum motors available but not in unit at present time. This control house was on a CMI UDM 1200 plant. The front- The plant computer is an Industrial pc-610 running Martin Engineering blending software. No load-out automation. Manual motor start/stop Button Station, Burner controller, lime controls and oil injection controls and feed bin controls (no DC cards). Many OEM Operators Manuals included. The rear on CH- The 480V, 3 phase, 60Hz.motor control center has a total of 17 starters (4 additional - #4 Allen-Bradley’s available) and 20 Breakers. 6- size 0; 3- size 1; 5- size 2; 2- size 3; 1-size 4 120V Transformer with distribution panel breakers. Do not know if the 2 DC Feed bin controllers in the electrical room work.

Gencor Computer Batching Controls Model SL-300 (In Cabinet) Gencor Manual Batching controls Model SP-100 (In Cabinet) Full Manual Controls To operate "UP TO" 5 Agg Bins Hot Bins Mineral Filler Recycle 2 A.C. 4 Cold Feed Up to 3 Asphalt Storage Silo's Up To 2 Transfer Slats One Main Slat Tower Flop Chute AMP Meters Gencor Gen III Burner Controls Monitors and printers M.C. Starters to run Motors no baghouse starter/brakers included ANY AND ALL MANUALS All equipment disconnected and stored.

Motor Control Center Large Nema Cabinet 1200 Amp Main Plus a 300 Amp Main Ran a 350 TPH Drum Plant Starters For: Drum, Baghouse, Slat, Conveyors, Compressors, Augers, Screen decks, Heater, Burner, Pugmill ETC

CONTROL TRAILER: 280 DEGREE WINDOW VIEW AUTO BURNER CONTROLS EASY BLEND COMPUTER CONTROLS SILO LOAD OUT 5 BIN COLD FEED CONTROLLERS SCALE HEAD LIME CONTROLS MOTOR STARTERS (SOFT START ON THE FAN) PORTABLE TANDEM AXLE THIS UNIT IS SET UP FOR QUICK DISCONNECTS AND RAN A 200 TPH PORTABLE DRUM PLANT.

Control House: Model # CCH 1SP SN# 011897401 2002 Astec 10' x 40' Bi-Level 360 Degree View 2002 PM96 Drum Plant Controls 2002 Siemens Bucketed Motor Starters (Soft Starts on Drum and Baghouse, 100 hp Compressor, Drag Slat) There is pic's of when it was erected and as it site in the desert. Plant was bought and parted out to different sites. The wire was rolled up with intent to re-use on the new plant (Never put into service). The pic's of it on the ground are 2 weeks old, Very Very nice ready to use control house. The plant is was built for was a 600 tph ASTEC/GENCOR plant 8 cold feed , two rap, lime system, 80,000 baghouse, 4 silo's two scales, 3 a.c. tanks etc.

CR Control House CR Controls (Condition Unknown) Portable 280 Degree Air/Heat Seltec Computer Controls (Condition Unknown) Barid Heat/Air Tandem Axle 8'x 20'

WEM HMB 3000 BATCH PLANT CONTROLS

Gencor Gen 111 Burner Controls Table Top Controls

Portable Control House (Custom Built and Never Put Into Service) 360 Degree Bi-level Removable Single Axle And Fifth Wheel All Steel Construction Corrugated Metal Outside Panels Wood Paneling Inside Steel Roof 3-16 Metal 3 Ton Central Air And Heat 15'4" Elevated Control Room 360 Degree View 12'10 Separate MC Room Motor Controls (Never Used or Hooked Up) Cutler Hammer MC Center Freedom Series Bucketed Starters 800 AMP Main 6 Rows Of Starters with Numerous Blanks for Expatiation Controls 6 Baldor NEMA 4 X DC Drive Controllers (For Cold Feed "Rap") Installed on Wall Cold Feed Manual Control Box (Never Installed) Manual Start Stop Station (Never Installed) Libra Computer Drum Mix System (Model Quantum "Ver 2000") Still in Boxes Libra Computer Silo Load Out System (Model Gen 11) Still in Boxes This unit was custom built for a 200 tph portable drum plant with a wet scrubber. The control house was built in 2003 there was over $170,000.00 invested in the Control House and Controls. I have many more pictures if interested.

Portable Control Van 8'x 25' Tandem Axle (10 Lug 10-22.00 Tires) Drum Plant Controls Aesco Madsen Control Center Lebra Computer Controls Hauck Burner Controls Baghouse Controls D. C. Cold Feed Controls MC. Center Twin 400 amp Mains All starters and Breakers in NEMA Cabinet Air/Heat

Portable Control House Lufkin Trailer 8' x 40 (3 Room) 280 degree Front Room Controls EZ Blend Computer Controls Gen 111 Gencor Burner Controls Full Start Stop Station 2- Silo Load Out Controls 2- Rap Bin Controls (D.C.) 5 Cold Feed Controls (D.C.) Central Air And Heat and Window Unit for Really Hot Days Middle Room M.C Center Cabinet Style M.C. Panels Square D Starters Runs 400 TPH Plant Rear Room Parts Room with Shelves Quick Disconnects This unit is in Use until March 1st, 2016 when the replacement counterflow plant comes on line.

CMI 280 DEGREE MOTOR STARTERS IN BACK GEN 111 BURNER CONTROLS 2 800 AMP MAINS STATIONARY STEEL BUILDING AIR AND HEAT

Stationary Astec 360 degree Bi-Level Stationary Wem HMLT 3000 controls Hauck Burner Controls Motors and Starters Heat and Air Ran 6,000lb batch plant

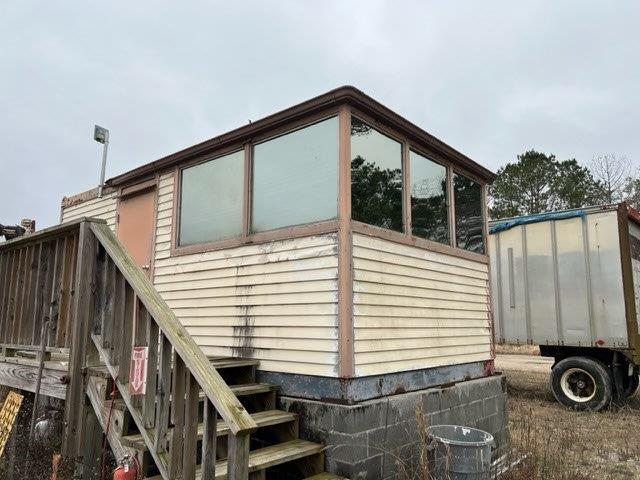

Stationary Control House 280 Degree View All Steel Construction Vinyl Sided Steel Roof Two Room (Front For Controls/Back For MC Center EMPTY) Rear Wire Access One Man Door
